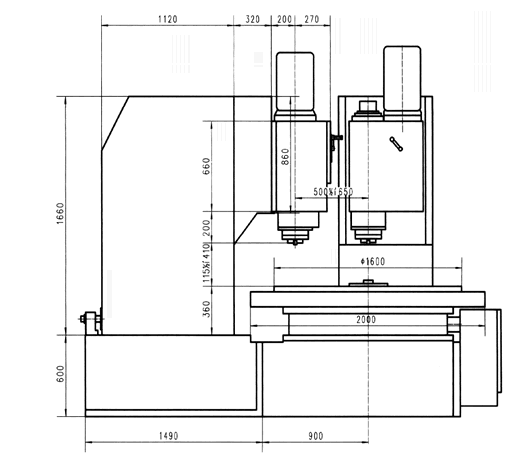

ZHXZ160C Turntable Milling

ZHXZ160C rotary table type modular machine tools in smilling modular machine with a co- ntinuously ritating table,which has been su- ccessfully developed lately in our country,it is well noted for its character that the configuration and some main technical data can be changed easily according to the shape of parts and the processing requirements can be satisfied fullest,With two(one) vertical mill -ing heads and the table rotating continguously,it can completehigh-effciency plan millin- g to casting pig,steel and non-ferrous metal parts.

產品介紹

Henry-Machine

Spindle end conical degree,NO NO.50(Ф128.57mm)
Spindle slider stroke 125mm
Spindle speed Type A 63-300r/min
90-300r/min
Type B 125-400r/min
192-600r/min
Power of spindle 7.5、11、15KW
Max diameter of cutter Ф400mm
Turning speed of table Type I 6.0-30min/r
Type?Ⅱ 4.0-19min/r
outer size(LXWXH) 4320*3000*2830mm
